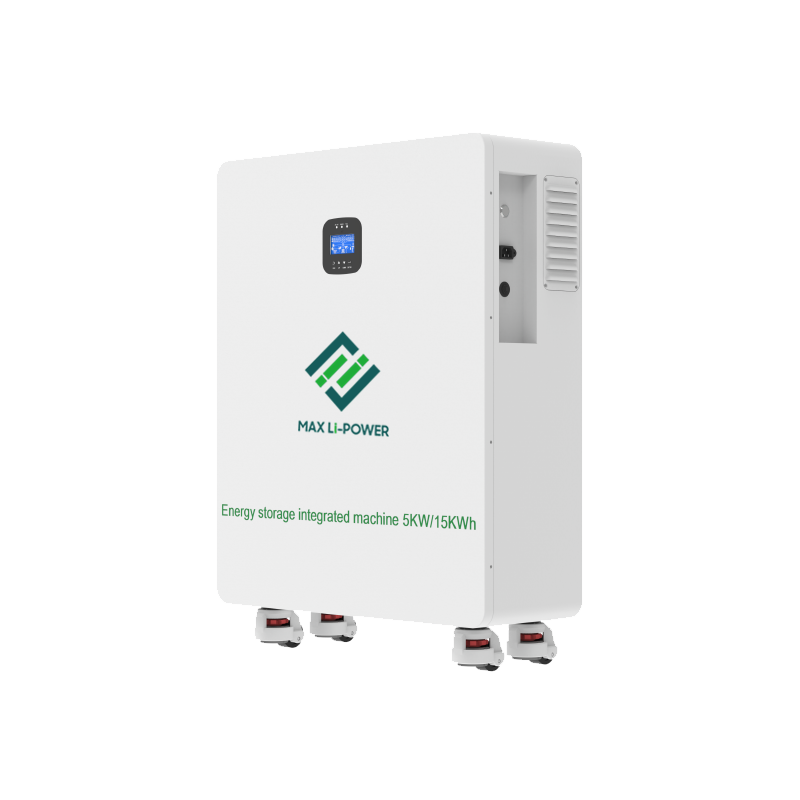

300Ah Integrated Machine

MA-Ark

Designed for residential energy storage with a 5KW inverter and 15.36KWh LiFePO4 battery.
Stylish, modern design that fits any home.
Easy to install and expand.
Floor-standing for stable placement and easy access.
Ideal for residential solar storage, backup, and off-grid solutions.

Up to 5000 cycles for extended use.

No fire, explosion, or leakage in extreme tests.

Optimizes performance and enhances safety.

Item	Basic Parameters
Model Name	MLP-ESS015FLP
Product Dimension (mm)	1057x597x236
Battery Nominal Voltage (Vdc)	51.2
Battery Nominal Capacity (Ah)	300
Battery Nominal Energy (Wh)	153600
Rated AC Output Voltage (Vac)	230
Rated AC Output Power (W)	5000
Rated AC Output Frequency (Hz)	50/60
AC Input Voltage Range (Vac)	200–264
AC Input Charging Power (W)	Maximum 4000, Can Be Set
PV Input Voltage Range (Vdc)	120~450
PV Input Charging Power (W)	Maximum 5000, Can Be Set
Communication Port	RS485, RS232, CAN
Run Ambient Temperature (°C)	-20~55
Storage Ambient Temperature (°C)	-15~40
Cooling Method	Fan
Protection Level	IP21
Cycle Life (Cycles)	>5000 time, 25°C/77°F, 70%DOD
Certification	CE/UN38.3
Weight (kg)	138
Warranty Period	5 years
