Product Information

Category:

MA-Ark

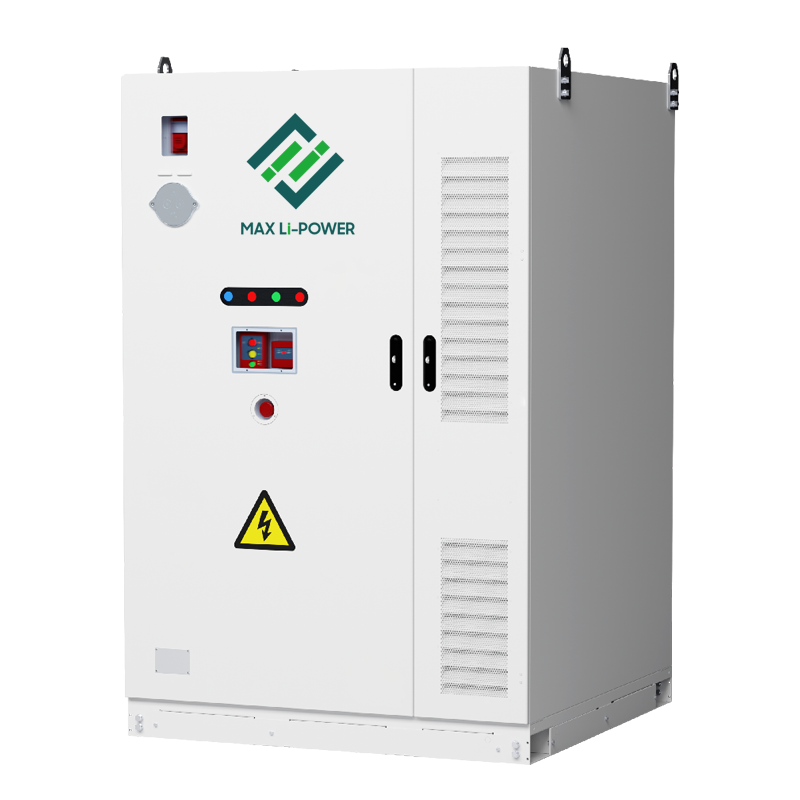

Liquid Cooling Battery Energy Storage Cabinet

• Plug-and-Play for ready to use.
• All-in-One integrated modular design.
• DC coupled for solar accessing.
• Parallel connection of multiple devices.
• On-grid/off-grid scenarios.
• Auxiliary grid service application.
• Level 6 Fire Protection.

Fire safety

Package-level & in-cabin detection dual.

High efficiency

Up to 90% of the AC side cycle efficiency.

Secure Electronic

MSD+FUSE integrated. Single-package isolation.

More Availability

All-in-one design + Partition management.

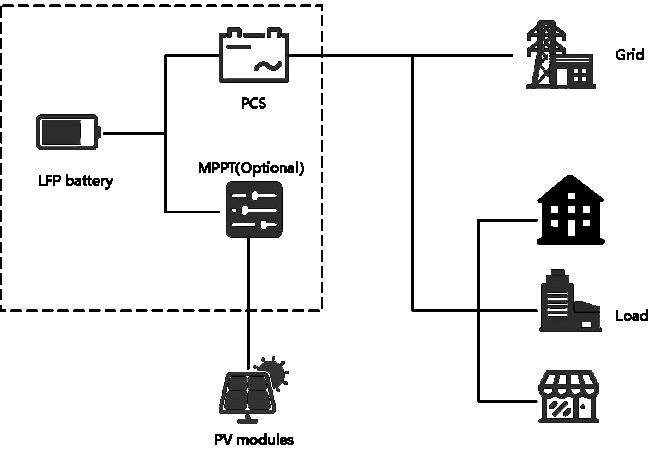

Ener Ark is a liquid cooling and Plug-and-Play battery energy storage system with easy to be transported, installed and maintained. It is an All-in-One system comprises of PCS, batteries, BMS, EMS, MPPT, automatic fire control system and temperature control system. High-performance LiFePo4 batteries ensures high safety and reliability with four layers of security architecture with intelligent BMS design. The synergy of the system components and unique design enable to achieve effective charging and discharging for various applications with high energy density and maximized battery life time. It supports AC coupling and DC coupling applications with its ease in integration and suitable for all ranges of C&I energy storage projects.

Factory, Office Park, Hotel, Farm

TOU arbitrage, peak power shaving

EV Charging Station

Power extension, solar benefit maximization

Microgrid

Multi-energy integration with solar, diesel generator, wind turbine, etc.

Distribution Network Operator (DNO)

Auxiliary grid service, VPP

Liquid Cooling Battery Energy Storage Cabinet

ModelEnerArk-MLP-261
DC Side Parameters
Cell typeLiFePO4-314Ah
Module model1P52S
Battery capacity range261kWh
Rated DC voltage832V
Operating voltage range728V–936V
AC Side Parameters
Charging/discharging power125kW
Grid voltage rangeAC 380V/400V
Rated output frequency50/60Hz
General Parameters
Dimensions (WDH)1400*1400*2225mm
Maximum weight2800kg
Protection gradeIP54
Cooling method typeLiquid Cooling
Fire fighting systemCombustible gas detection + Novec1230 + Water
Anti-corrosion gradeC3
Relative humidity0%–95% (non-condensing)
Operating temperature*-20°C–55°C
Altitude**≤3000m
Noise level≤65dB
Communication interfaceRS485, Ethernet
Communication protocolModbus RTU, Modbus TCP/IP, CAN, LAN
Product standard warranty5 years, 8000 cycles (25°C, 0.5C, DOD90%, EOL70%)
Certifications
SystemCE(IEC61000), IEC62477, IEC62109, UN3480
ConverterVDE4105, EN50549, AS/NZS4777, CE(IEC61000, IEC62477)
CellIEC62193, UL1973, UL1642, UL9540A
PACKUN38.3

*The system will be derated when the ambient temperature exceeds 45°C.
* The system will be derated when the altitude is between 2000 and 3000m. For every 100m increase in altitude, the system will be downgraded by 5%. Notice: Max Li-Power reserves the right of final interpretation of the above data and reserves the right to change theabove data without prior notice.
