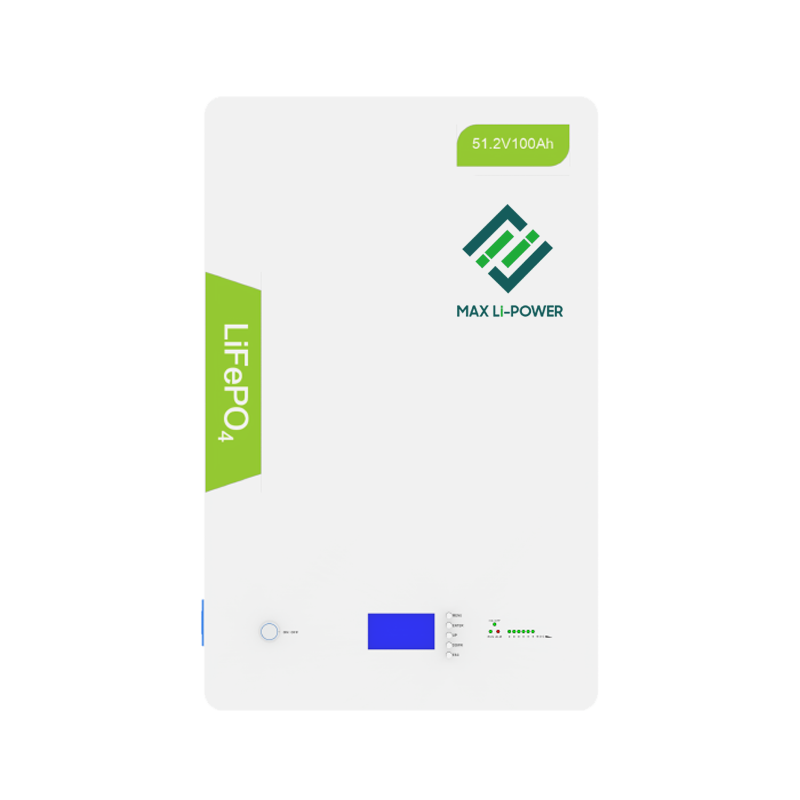

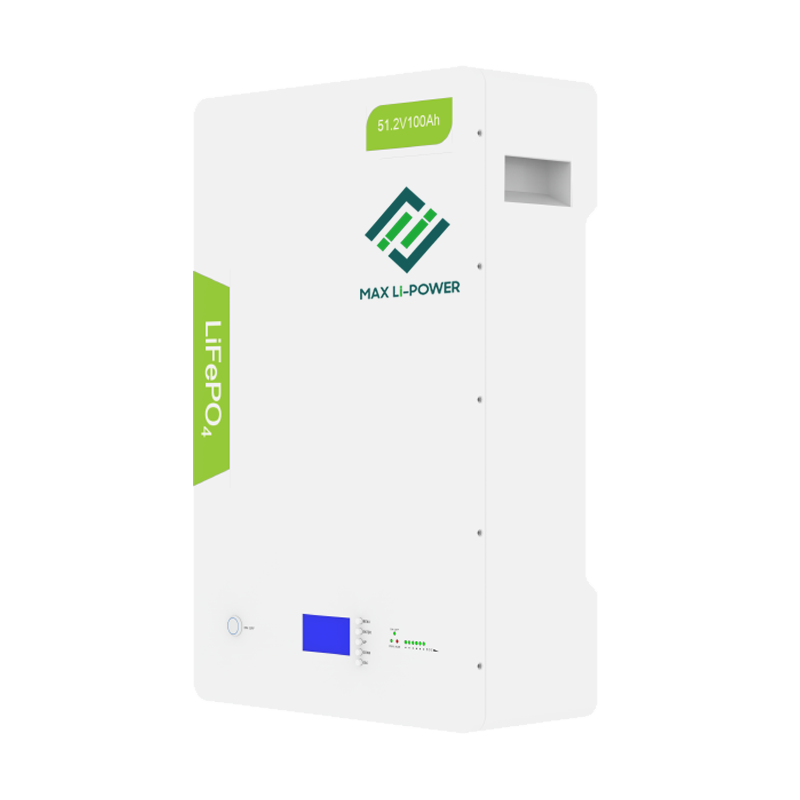

| Model Name | MLP-51100W3 |
| Cell Serial-Parallel Connection Method | 16S1P |
| Nominal Voltage (V) | 51.2 |
| Nominal Capacity (Ah) | 100 |
| Nominal Energy (Wh) | 5120 |
| Working Voltage Range (V) | 43.2-57.6 |
| Maximum Continuous Charge Current (A) | 100 |
| Maximum Continuous Discharge Current (A) | 150 |
| Charge Cut-off Voltage (V) | 58.4 |
| Discharge Cut-off Voltage (V) | 43.2 |
| Communication Port | RS485, RS232, CAN |
| Charge Ambient Temperature (°C) | 0~45 |
| Discharge Ambient Temperature (°C) | -20~60 |
| Storage Ambient Temperature (°C) | 10~30 |
| Cycle Life (Cycles) | >6000, 25°C/77°F, 80% DOD |
| Protection Level | IP54 |
| Certification | CE/UN38.3 |
| Dimension (mm) | 620380133 |
| Weight (kg) | 48 |
| Warranty Period | 5 years |
